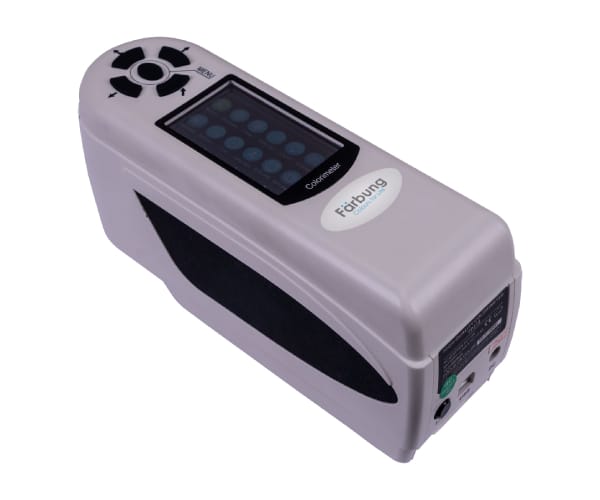

TP310 is a prominent color measurement instruments used in many mainstream industries which has been designed and manufactured by competent engineers and scientists of Presto Stantest. The instrument has many advantages of other international standard color measurement instruments. The product has undergone thousands of tests to provide affordable, accurate and stable testing to the customers.
The TP310 is a portable and high quality color measurement instruments works with color sensor with multiple channels of international standards. It is also provided with highly stable IC platform and an efficient algorithm that provides highly accurate and fast test results for color quality control management to the users. The instrument has an ergonomic design which facilitates easy operation of the equipment and has been applied on a number of other patents. It is a versatile and multifunction color measurement instruments which is easily available for the users at very competitive prices. The product has undergone thousands of tests to provide affordable, accurate and stable testing to the customers.
The portable color measurement instrument is used to measure the color consistency of various types of products and is designed for many production verticals like plastics, rubbers, paper & Packaging, paint & plating, automotive, textile and many more. The testing device is user-friendly and offers highly reliable and accurate test results.
Technical Specifications
| Parameter | Specification |
|---|---|
| Illumination/Observation System | 8/d (8° illumination / diffuse viewing) |
| Measuring Aperture | 8 mm, 4 mm (diameter) |
| Optional Aperture | 8 mm extended aperture |
| Light Sources | LED blue light excitation, D65, D50A |
| Detector | Silicon photoelectric diode |
| Color Space Indices | Yellowness & Whiteness, Color Fastness, CIELabCh*, CIELab*, CIEXYZ, CIERGB, CIELuv*, CIELCh* |
| Color Difference Formulas | ΔEab, ΔLab, ΔECh*, ΔECIE94, Hunter |
| Measuring Range | L: 0 to 100 |
| Minimum Interval Between Measurements | Approx. 1.0 s |
| Measurement Repeatability | Max allowable deviation under ΔE*ab 0.06 |
| Sample Storage Capacity | Up to 20,000 samples |
| Standard Storage Capacity | Up to 100 standards |
| Power Source | Rechargeable Li-ion battery (3200 mAh, 3.2V) |
| Communication Interface | USB |
| Optional Accessory | Miniature Thermal Printer |
- Adopts accurate camera locating feature
- Illumination locating for user ease of operation
- Software based output of test results
- Auto white and black calibration
- Various Color Sources
- Display of Whiteness, Yellowness, and Color Fastness
- Provides highly convenient operation and has an ergonomic design.
- The measurement and performance of the instrument are highly repeatable and stable.
- With computer software given with the instrument, the functionality of the instrument can be expanded extensively.
- The instrument also has a highly advanced design for power management.
- Standards: CIE
