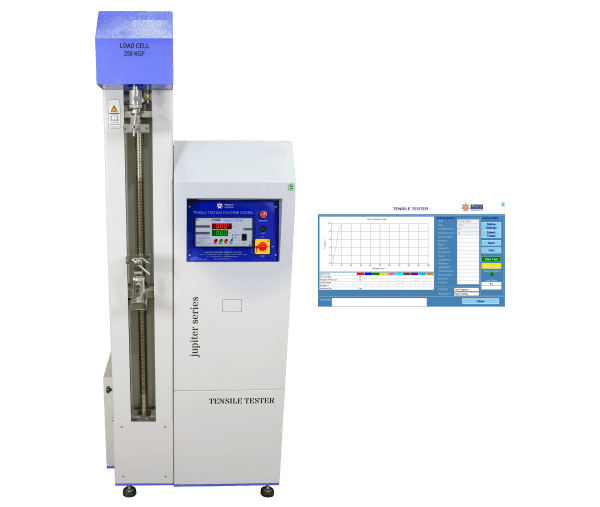

Tensile strength is the stress at which a material breaks or permanently deforms. PRESTO Digital Tensile Tester is a state of the art, highly versatile equipment for checking the breaking strength of packaging related raw materials and finished products. It has a single column vertical movement on low friction ball screws.
This digital cum computerized model of tensile strength tester comes with a digital display and computer display that makes it easy for manufacturers to conduct tensile strength tests on the materials. The machine operates by clamping the material sample in between two grips and then applying a tensile force to the sample until it breaks. The digital control system and Win-Test software measure the amount of force applied, as well as the elongation or deformation of the sample, allowing for the calculation of various mechanical properties.
One of the standout features of this tester is its Graph Test Report, which displays force versus time. This allows users to easily monitor the strength of materials over a period of time, making it easier to identify any weaknesses or defects.
Users can also email reports directly from the tester, as well as tabulate data in Excel for further analysis. Presto is a leading tensile strength tester manufacturer and offers this testing equipment at the best price.
Technical Specifications
| Parameter | Specification |
|---|---|
| Display | Dual: Computer Display & Digital Display |
| Accuracy | ±2% of Load Cell Capacity (on full scale) |
| Load Sensor Type | Universal ‘S’ Type Load Sensor |
| Grip Travel Length | 25 mm to 700 mm |
| Motor | 1/5 HP, 1440 RPM, Single Phase |
| Speed Control (via AC Drive) | 50 to 500 mm/min (available in optional model) |
| Power Supply | 220V AC, 50 Hz, Single Phase |
- The Graph Test Report is Force Vs Time .
- Report can be saved on desktop
- 10 Sample Reports can be seen on one Report
- Report can be E-mailed
- Data can be tabulated in Excel
- Your company logo & address can be placed in the Test Report
- Report has description of Product name , Operator , Batch , Shape , Standard ,Date , Time & Remarks
- Pass/Fail criteria can be programmed
- Microprocessor based digital display
- Bright LED display
- Feather touch controls
