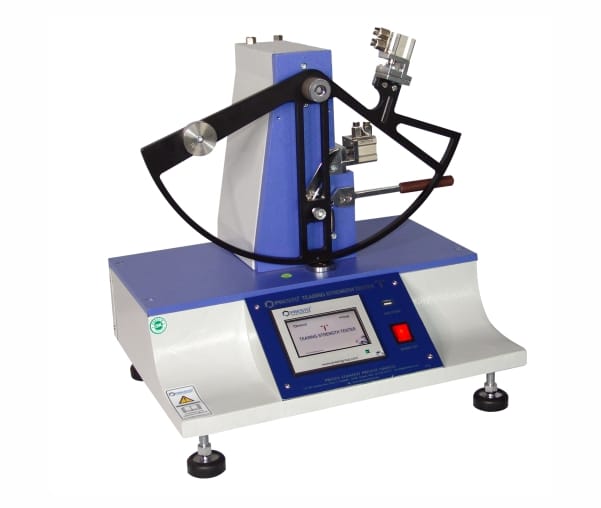

This lab testing instrument has been designed with high-end features like the latest and fastest Human Machine Interface (HMI) powered by a Cortex-A8 high-speed processor and a 65,536 color LCD display panel with high brightness and contrast which has a user-friendly UI with alpha-numeric control.
The HMI model of the Presto tearing strength tester is made in accordance with industrial standards that includes ASTM D1424-09(2013), ASTM D1776, and ASTM D689. Its high-quality rugged structure and one-touch hassle-free operation will make it easy for the manufacturers to conduct tearing strength tests on the materials with ease. It works on pneumatic specimen clamping and automatic release of the pendulum and provides highly accurate testing results under multiple pendulum weights.
Users can accurately perform tearing strength tests under controlled testing conditions, with the use of this quality lab testing instrument. Presto is a leading tearing strength tester manufacturer and provides the best tearing strength tester price to customers.
Technical Specifications
| Parameter | Specification |
|---|---|
| Force for Pendulum | 1600, 3200, and 6400 gf |
| Sample Clamping Mechanism | Automatic (Pneumatic) |
| Slit Size | 20 mm |
| Unit Scale Range | 0–100% |
| Zero Setting | Adjustable Zero Point |
| Calibration Check Weights | At 1600 gf, 3200 gf, and 6400 gf |
| Input Air Pressure | 2–4 kg/cm² |
| Air Supply Port | Ø6 mm tubing |
| Input Power Supply | 220V AC, Single Phase, 540 Hz (likely typo; standard is 50 Hz—please confirm) |
| Data Output | USB Port |
| Angular Resolution | High-resolution optical encoder |
Highlights
Clamps: Flat type for firm sample holding
Legs: Adjustable leveling legs for stability
Material (Main Body): Mild Steel construction for durability
Blade Type: Precision single-edged blade
Test Report Output: Yes, in PDF format
Optional Feature
Higher Capacity Pendulum: 12800 gf force model available upon request
