Model PSR – 292 (Prima)

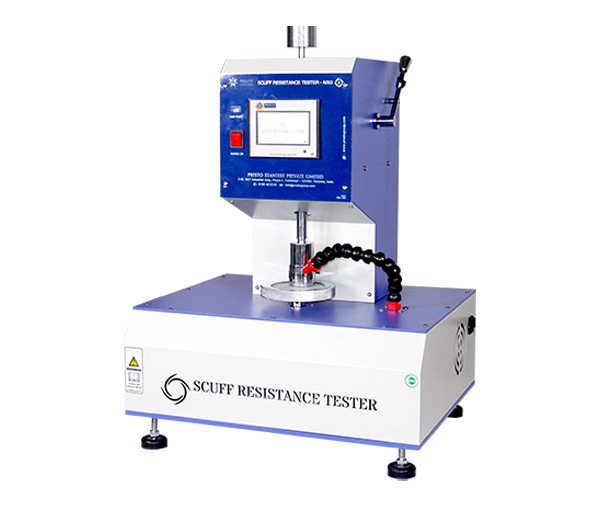

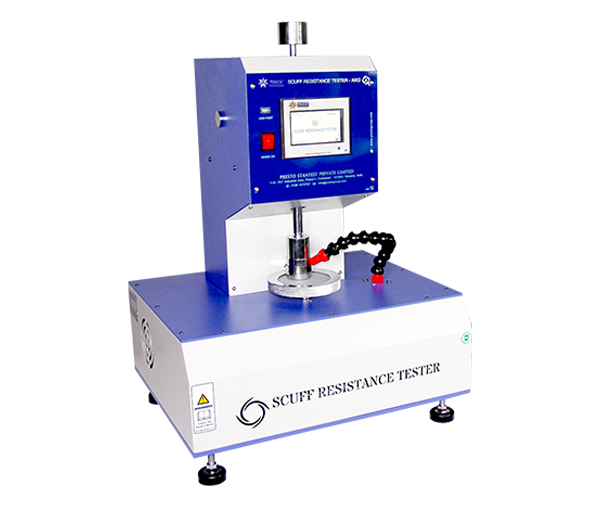

It checks the color transfer when one surface is rubbed against other when subjected to continuous rubbing under specified load. PRESTO Scuff Resistance Tester is designed as per standards ASTM F2497-05, BS 3110:1959.
Other model available are Scuff Resistance Tester – Digital Model.
Presto scuff resistance prima model has been designed with highly advanced features that make it easy for the printing product manufacturers to conduct scuff resistance tests on the labels, and other printed materials. This HMI-based touchscreen model will perform highly accurate lab testing results under a uniform load and with a specified diameter.
It comes with a pre-settable counter of up to 9999 counts built into the HMI, making it easy for users to keep track of the test progress. The blower with set counts and Auto/Manual operation adds to the convenience and efficiency of the instrument, making it an excellent choice for a range of scuff resistance testing applications. Manufacturers of the printing product industry can easily perform scuff resistance testing on the products with the help of this quality testing instrument.
| Test Weight | 2 psi |
| Display | HMI (Touchscreen) TFT LCD 65536 Colors 480 x 234 pixels Size : 4.3 Inch |
| Counter | 4-digit (Inbuilt in HMI) |
| Max. range of counter | 9999 |
| Least Count of counter | 1 |
| Blower | High speed blower rpm 2500 -2900 |
| Rotational Speed | 60rpm+_ 1 rpm |
| Control | Programmable logic control |
| Diameter of Upper Clamp | 48+_ 2 mm |
| Diameter of Lower Clamp | 120+_ 2 mm |
| Power | 220V, 50Hz, single phase |
Highlights:
| Safety Lock | Yes (with upper clamp) |
| Sample Preparation templates | 3 nos |
| Material | Mild Steel |
| Finish | Power coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish |
| Dimensions | 220V, 50Hz, single phase |
Q: Can I save and retrieve test data after conducting a scuff resistance test?
A: Yes, there is a USB option available for storing test data, and the machine can output data in a data record format. This facilitates easy data retrieval and analysis.
Q: What type of motor system is used for scuff movement?
A: The machine employs a motorized geared system for scuff movement, which ensures consistent and precise rubbing motion during testing.
Q: How does the Scuff Resistance Tester ensure uniform load and specified diameter during testing?
A: The tester utilizes a motorized weight arrangement on the plunger, circular clips/clamps for holding the test specimen, and a highly accurate geared system for scuff movement to ensure uniform load and rubbing clamp movement, resulting in precise and consistent test results.
Q: What type of materials can be tested using the Prima model of Presto scuff resistance tester?
A: This quality tester is suitable for assessing the scuff resistance of labels and various printed materials, ensuring they meet the required durability and aesthetic standards.
Q: Can I program specific test parameters and counts using this machine?
A: Yes, you can program the Scuff Resistance Tester with specific test parameters, including the number of counts, through the HMI. This allows you to tailor the testing process to your specific requirements.
Q: What is the purpose of a scuff resistance tester in packaging?
A: The Scuff Resistance Tester is used to determine the resistance of labels and printed materials to abrasion, scratching, or rubbing. It ensures that these materials can withstand handling and transportation without losing their quality.
