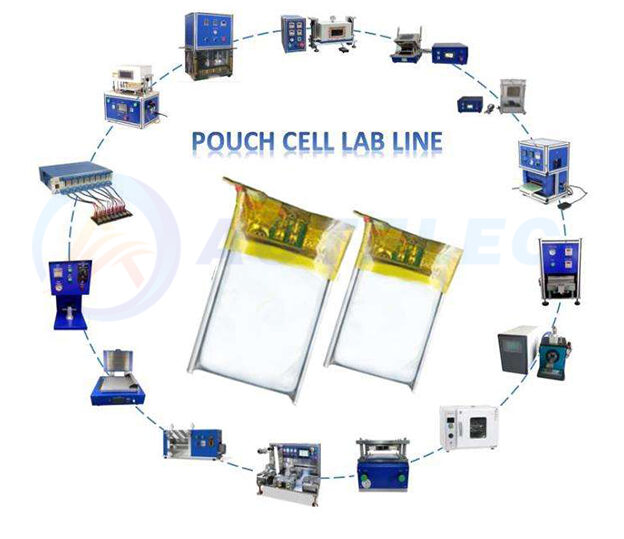

Pouch Cell Line Making Machine for Li ion Battery

Product Name;Pouch Cell Line Making Machine
Model:AOT-PCB01
Compliance: CE Certified
Origin:China
Product description: AOT offers the full set of pouch cell battery producing equipment from mixing to last testing equipment.

Overview

No.	Model	Name	Explanation
1	AOT-DZF-6050	Vacuum drying oven	For materials, electrode, battery baking, price include vacuum pump, you will need 2 ovens.
2	AOT-FA2004	Electronic analytical balance 200g/0.1mg	For materials, Aluminum Foil, copper foil and electrode weighing, at least choose the 0.1mg accurate model or more high precision model
3	AOT-SMF-6E	Vacuum Mixer	For cathode and anode materials mixing, price include two mixing tanks.
4	AOT-SNB-1A	Digital display viscometer	To control the viscocity of slurry
5	AOT-FT02	Magnetic De-ironing Filtration System	Remove big particles and iron
6	AOT-CCM-300	Cotinuous Coating Machine	Knife coating method. continuous coating process.
7	AOT-HRP-H150-200	Hot rolling press	200mm rolling width, for coated electrode calendering, heat function good for pressing
8	AOT-DC-300	Semi-auto Battery Electrode Die Cutting Machine	Max size: 200mm*300mm (size of die customized), with two set dies for cathode and anode
9	AOT-MST-200	Manual stacking machine	For electrode and separator stacking
10	AOT-USW-2000W	Ultrasonic Spot Welder	Suitable for 10-20 layers of electrode spot welding
11	AOT-YD2681A	Short Circuit Tester	For testing the accidental short between anode and cathode after final sealing.
12	AOT-MPF-200	Semi-auto aluminum pouch forming	Max size: 160*120mm
13	AOT-TSS-200	Hot sealing machine	for pouch cup Top-side sealing, max width 200mm
14	AOT-EIP-10	Single Head Electric Injection Pump	With 10pcs filling drivepipe; manual type optional
15	AOT-SB300	Electrolyte Diffusion Chamber	For removing air from the electrolyte after it’s been injected into the polymer li-ion cell or after the formation for final sealing under a vacuumed condition
16	AOT-VPS-200	Vacuum Pre-sealing Machine	Max 200mm sealing width
17	AOT-VFS-200	Vacuum Sealing Machine	For pouch cell secondary sealing, with needle to puncture air bag and remove the air, it is optional for lab
18	AOT-HPS-200	Hot Press Shaping Machine	Hot/Cold Press Machine for pouch cell battery core after stacking and vacuum sealing
19	AOT-VGB-4	Dual work station glove box	With purification system, water and oxygen index less than 1ppm, single side four gloves operation
20	AOT-BTS-5V6A	battery tester	For battery charging, discharging, capacity, cycle testing, suitable for both cylindrical battery and pouch cell.
21	AOT-R203	Battery Internal Resistance Tester	Testing battery resistance is a rapid and accurate method to check battery performance, usually the smaller resistance is higher quality

Specifications

Features

FAQs

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).

Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.

Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.

Q4:How to get technical support after purchasing?

A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
