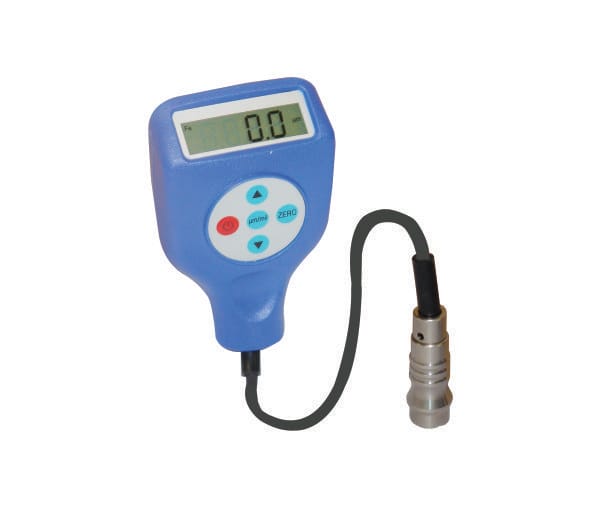

Presto’s coating thickness gauge is used to measure the thickness of the coating on the surface. The instrument has capability to measure the non-conductive coating in ferrous and non-ferrous materials. It is true professional product for material thickness measurement or coating thickness measurements and flaw detection. It can give accurate measurement of non-conductive coating for non-ferrous surfaces like aluminum, zinc, copper, tin and ferrous surfaces like iron. It is primarily based on eddy current measurement methods. It is a popular way of non-destructive coating. It is a feature loaded instrument and designed in a manner so that special skills are not required for operating it. It comes with flexible leads for easy operation. Non-destructively measure thickness of non-conductive coating (Paint, enamel, rubber plastic etc.) on magnetic (iron) & non-magnetic metal (Aluminum, copper, zinc, Tin, etc.) substrates.
Technical Specifications
| Parameter | Specification |
|---|---|
| Display | 4-digit LCD, 10 mm character height |
| Measurement Range | 0–1500 µm / 0–50 mil |
| Resolution | 0.1 µm (for 0–99.9 µm range) |
| Accuracy | ±1–3% or ±2.5 µm or ±0.1 mil (whichever is greater) |
| Power Supply | 4 × 1.5V AAA (UM-4) batteries |
| Operating Temperature Range | 10°C to 50°C |
| Operating Humidity | <80% RH |
- Auto-Hold reading on the display
- Based on Eddy current measurement method
- Flexible lead Measuring Probes set of 5 Calibration Foils and Zero Disks.
- Thickness Range : 0-1500 micro metre
- Accuracy : ±2.5 micro metre
