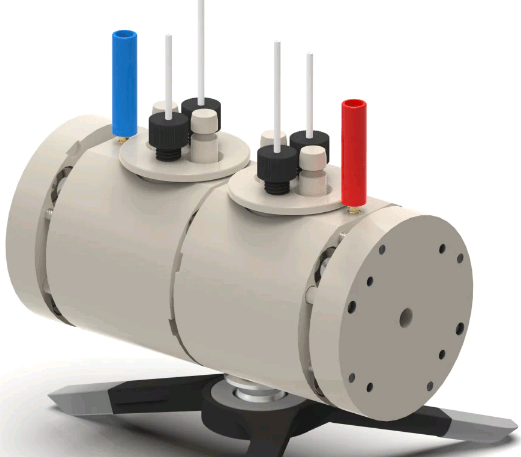

This is a horizontally mounted, double compartment photo-electrochemical H-Cell used to simultaneously or individually investigate thin film photo-anode and photo-cathode. The cell elements are made of PEEK and Fluoropolymers. It well fits aqueous (FKM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight having two separate chambers, each equipped with gas inlet and outlet. This allows bubbling the solution and evacuating gases. Chambers are separated with an ion-exchange membrane (e.g. DuPont’s Nafion® membrane), so the electrochemical products appearing at photo-anode and (photo-) cathode do not affect the opposite electrode. Screw mount and hook clamp versions of this cell are available on request.

Specification

• Minimum Electrolyte Volume: 2×10 mL
• Maximum Electrolyte Volume: 2×15 mL
• Electrode Plug Diameter: 6 mm
• Maximum Substrate Thickness: 3 mm

Product includes

1. 2 x lid
2. 2 x chamber
3. 2 x sample mount
4. 2 x Tantalum contacts
5. 1 x micro tripod
6. 4 x plug
7. 1 x set of O-Rings (18 pcs)
