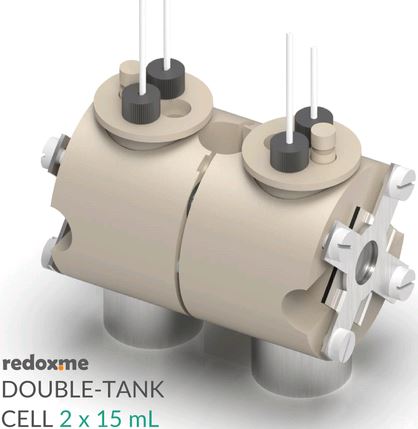

This is a horizontally mounted, double-tank cell typically used for anodization of Si-wafers with electrolyte backside contact. It consists of two polyether ether ketone (PEEK) gas-tight chambers each equipped with sapphire wafer serving as window for illumination allowing light-assisted porous Si formation. It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The Si substrate is mounted in between these chambers and sealed with O-rings under magnetic mount (a screw version is available on request). The preparation of a whole porous Si substrate with this cell is possible at one simple etching step, assuring high reproducibility.

Specification

• nominal exposure area: 1 cm2 (other values on request)
• minimum electrolyte volume: 2×10 mL
• maximum electrolyte volume: 2×15 mL
• electrode plug diameter: 6 mm
• recommended Si-wafer size: 25 mm x 25 mm

Product includes

• 2 x lid
• 2 x chamber
• 2 x window holder
• 2 x sapphire window
• 2 x set of screws
• 2 x pillar
• 2 x plug
