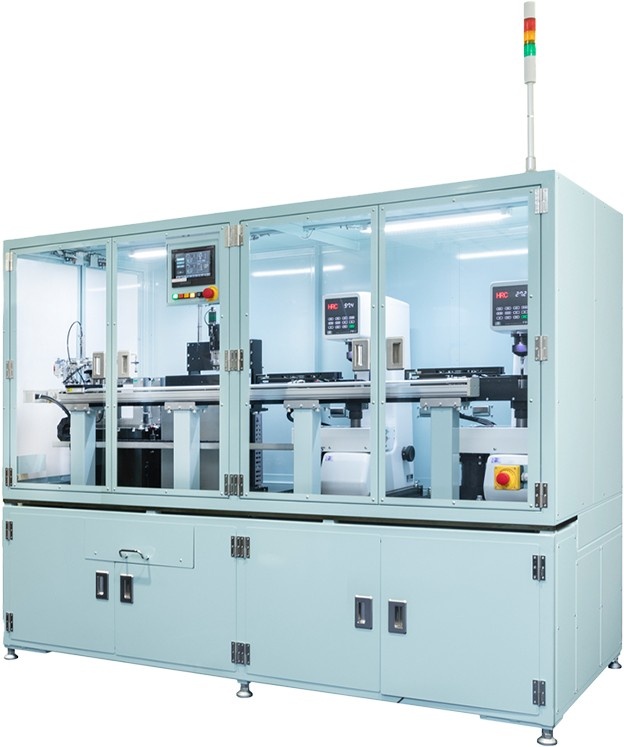

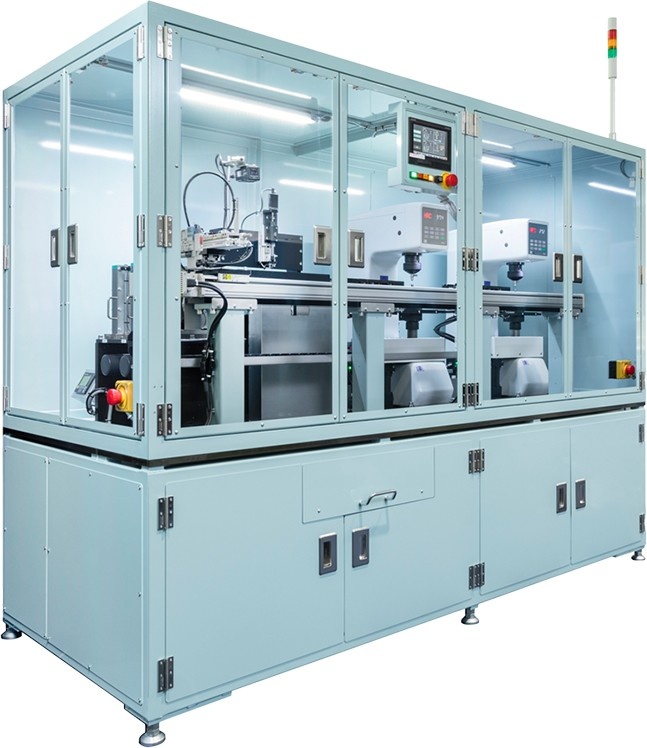

FULLY-AUTOMATIC THIN STEEL ROCKWELL HARDNESS TESTING SYSTEM

Automation of total process has been realized

All the operator has to do is set the test piece, and the test piece is conveyed, and each process is automatically operated.

  • 1Bar-code reading
    The bar-code of the test piece is identified with the automatic reading device, and the information is input to the PC.
  • 2Bored thickness measurement
    The thickness size of the test piece is input to the PC by the board thickness measurement, and it judges whether the size is in the standard automatically.
  • 3Hardness mesurement
    The measurement point is automatically increased when the hardness value varies widely, to prevent the judgment mistake of the result. After the measurement, the hardness value is input to the PC, and it judges whether the value is in the standard automatically.
  • 4Test piece remove
    The test piece which finished test is automatically distributed to acceptance or rejection.
