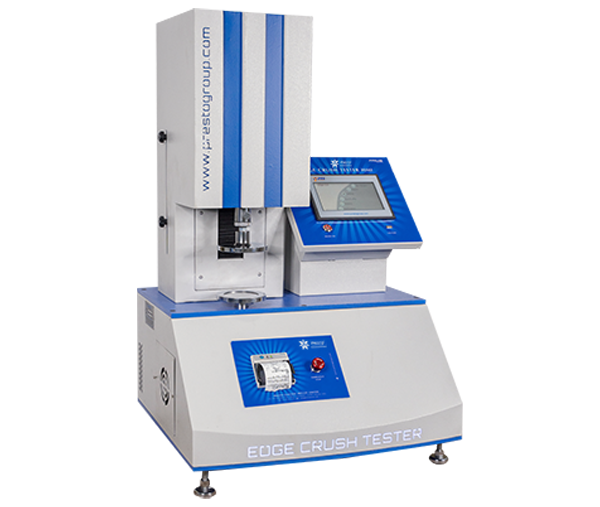

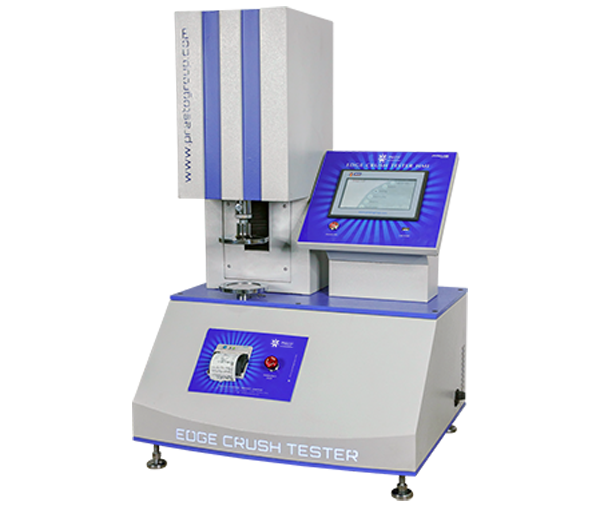

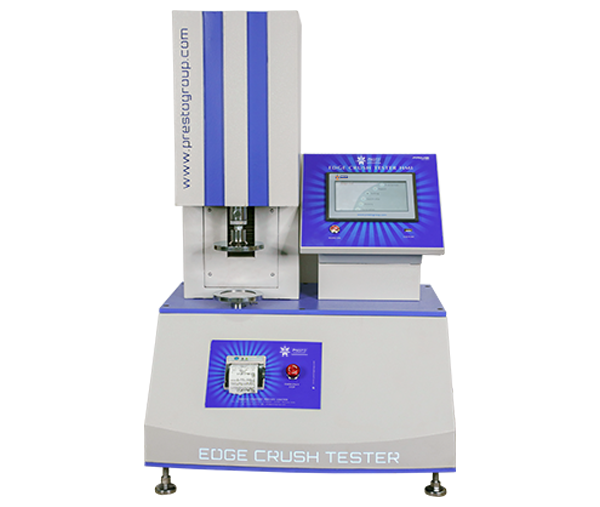

Edge crush tester

Category Paper & Packaging Testing Instruments

The edge crush test is one of the common quality tests that will be conducted on the material to ensure that your product will be able to withstand edge crush force. Presto has recently introduced an edge crush-Prima model that has designed this equipment with an automated Human Machine Interface. This lab testing instrument has been designed with a stable and practical mechanical structure with uniform movement over 90 ° alignments. It has been installed with a thermal printer that can instantly print the test result without the hassle of cartridge refill.

Model ECT (3.0) prima series

Overview

The prima model of this lab testing equipment has a microprocessor-based high-speed controller designed to provide accurate test results. It has been programmed with individual test templates for measurement with three tests (RCT/FCT/ECT).

Users can easily get accurate test results of ten samples at a time and when a test is complete, the dynamic fixtures automatically move to the home location. This is the fastest Human Machine Interface (HMI) powered by a Cortex-A8 high-speed processor and allows the users to connect the machine to your computer for access. This edge crush testing instrument will work with a noise-free mechanism and users can generate and download the soft copy of the report in-a-go in pdf format.

Specifications

Capacity	500 kg ( Different Capacity also available on request )
Display	Latest Colour TFT Touch Screen
Accuracy	± 2% At full load ( With master load )
Least Count/Resolution	0.01 Kg
Power	220V, Single phase, 50 Hz
Test Speed	12.5 ± 2.5mm/min.
Data Output	USB port available
Motor	1/4 HP Single Phase , 1440 rpm
Compression Plate Size	Dia 100mm ±2mm

Highlights:

Maximum sample ( Average Result )	Up to 10 test values
Peak Hold Facility	Yes
Safety Switch	Yes
Material	Mild Steel
Finish	Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish
Reporet can generate	Yes ( Sample Results and Bar Graph )
Thermal Printer	Yes
Computer Connectivity	Yes ( VNC software with advance security features
Dimensions	600 x 524 x 934mm

Features

Highly accurate results
Microprocessor-based high speed controller for accurate test results
The equipment is programmed with individual test templates for measurement with three tests (RCT/FCT/ECT)
The equipment is designed to provide easy access by automatically calculating the ECT value
Can test with maximum, minimum, and average results for ten samples.
When a test is complete, the dynamic fixtures automatically move to the home location.
Fastest Human Machine Interface (HMI) powered by Cortex-A8 high-speed processor
HMI can also be connected to your computer for access.
USB option available (Pen drive is not a part of supply)
Separate fixtures for ring crush, edge crush, and flat crush test.
Current test running status display
Our machine works with noise-free mechanism
Can generate and download the soft copy of the report in a go in pdf format
CSV format and you can add as much customize the information
Equipment is added with security layers to allow access only to registered user
Use USB interface and PC communication, synchronous test function can connect to the computer

FAQs

Q: Can users generate and download test reports in digital formats?
A: Yes, the Edge Crush Tester Prima offers the convenience of generating and downloading soft copies of test reports in PDF format. This allows manufacturers in the paper and packaging industry to easily document and analyze their results for quality control purposes.

Q: Is the Edge Crush Tester Prima noise-free during operation?
A: Yes, this testing instrument operates with a noise-free mechanism, ensuring a quiet testing environment. Rest assured that you can perform accurate and reliable tests without disrupting the peace and productivity of your facility.

Q: Does the Prima model offer easy data access and transfer capabilities?
A: Yes, it does. The Prima model has a fast Human Machine Interface (HMI) powered by a Cortex-A8 high-speed processor. Users can connect it to their computer for easy data access.

Q: How many samples can be tested at once with the Prima model?
A: The Prima model from Edge Crush Tester allows the testing of up to ten samples simultaneously. This advanced feature not only saves time but also ensures accurate and reliable testing results for paper and packaging manufacturers. With the ability to test multiple samples at once, users can increase their productivity and efficiency without sacrificing the quality of their products.

Q: What types of tests can be performed with the Edge Crush Tester Prima?
A: The Prima model of Edge Crush Tester is capable of performing three different types of tests including RCT (Ring Crush Test), FCT (Flat Crush Test), and ECT (Edge Crush Test). This lab testing equipment has programmed individual test templates for the measurement of edge crush, flat crush and ring crush values.
