Colour Matching cabinet

Category Paper & Packaging Testing Instruments

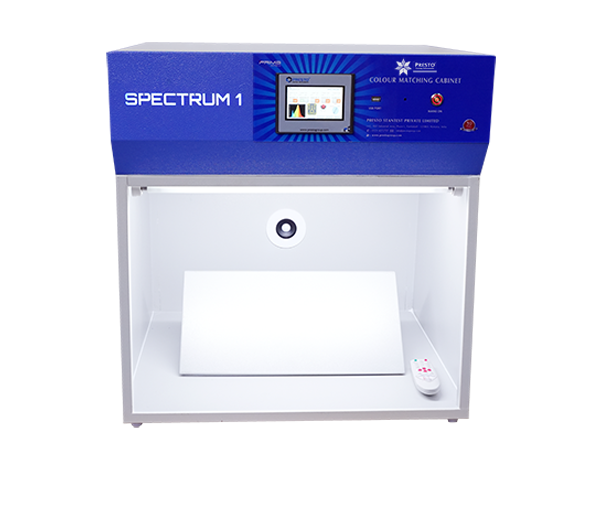

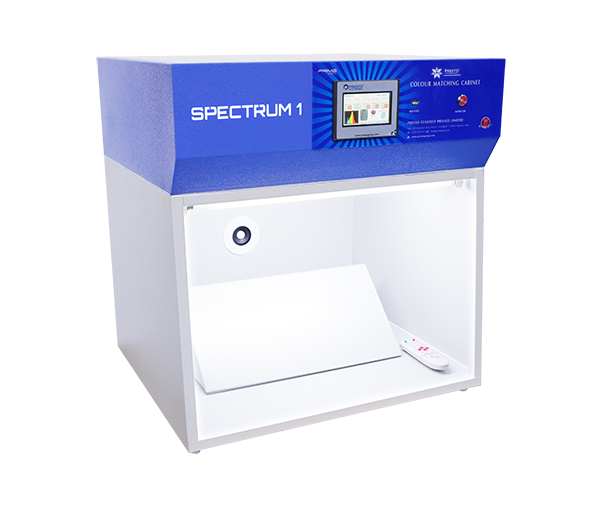

Presto Color matching cabinet- Spectrum I Prima series has been designed to match the consistency of colors present in the product. This quality lab testing instrument has been designed accurately with correct light types and thus allows direct comparison of products that must have special color characteristics. Users will get five possible lighting types embedded in this testing instrument. These colors are supplied as standard: “D65”, “TL84, “UV”, “CWF” and “TFL”.

Model PMC 3.0 Prima Series

Overview

We have made all these features available to you from the latest and fastest Human Machine Interface (HMI). You can generate and download the so copy of the report in-a-go in pdf format by inserting a USB in the HMI. This color-matching testing instrument has been made in accordance with industry standards that make it easy for the manufacturers to conduct color-matching tests on the samples.

This lab testing instrument has been designed with the fastest Human Machine Interface (HMI) powered by a Cortex-A8 high-speed processor. Besides this, it comes with a 45-degree fixture for the placement of the sample. It has standard LUX criteria that will be defined and an alert message displayed when it decreases.

Specifications

Light source Watts:18 watts
Type of light source: D-65, TL-84, CWF, UV, TFL
Display: FT touch screen 4.3 inch
Control: Touch screen and Remote control
Lux Reading: Inbuilt Lux sensor ( Monitor each light source )
Light source size: Tube light size 2 feet viewing
Number of light sources: Five
Supply: Single phase 220 V Ac, 50 Hz
Angle Of Viewing Booth: 45 degree

Features

45-degree fixture for placement of the sample
Fastest Human Machine Interface (HMI) powered by Cortex-A8 high-speed processor
USB option available (Pen drive is not a part of supply)
Can easily be operated with two methods i.e. manual (through touch screen) and remotely.
Current light running status display
Can easily program cyclic mode to define the separate time of each light.
Can generate and download the soft copy of the report in a go in pdf format
CSV format and you can add as much customize the information
Equipment is added with security layers to allow access only to registered user
Incorporated with online LUX meter to monitor the healthy status of lights
Standard LUX criteria will be defined and an alert message displayed when it decreases
