Cobb sizing tester is used for fast determination of the quantity of water absorbed by a paper or board in a given time. The Water absorptiveness (Cobb value) of a substance is defined as the mass of water absorbed in a specific time by a 1 sq. meter sample of paper, board or corrugated board, under standardized conditions.

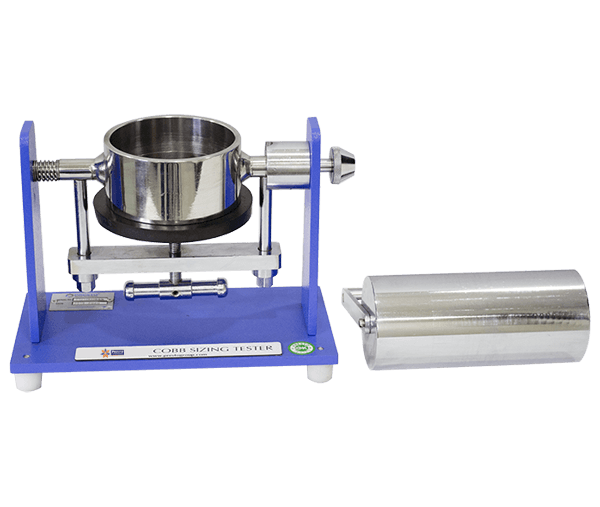

Cobb Tester measures the amount of liquid penetration into a sheet of Paper, Cardboard or Corrugated Board. The Cobb sizing Tester consists of a cylindrical container clamped to a flat base with a flexible backing onto which the sample is placed. Cobb sizing tester provides a simple, standardized method for fast determination of the quantity of water absorbed by a paper or board at a given time.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sample Diameter | 130 mm (approx.) |
| Depth of Test Cylinder | 60 mm |
| Diameter of Rubber Pad | 145 mm |
| Water Level Indicators in Cylinder | 10 mm and 25 mm |
| Weight of Roller | 10 Kg (approx.) |
Features
- High: Grade stainless steel test area
- Rugged structure with corrosion resistant main body
- Lightweight and resilient
- Fast Locking Mechanism
- Single handed High-Quality hassle free operation
- Highly accurate test results
- Standards: IS 1060, TAPPI –T441
