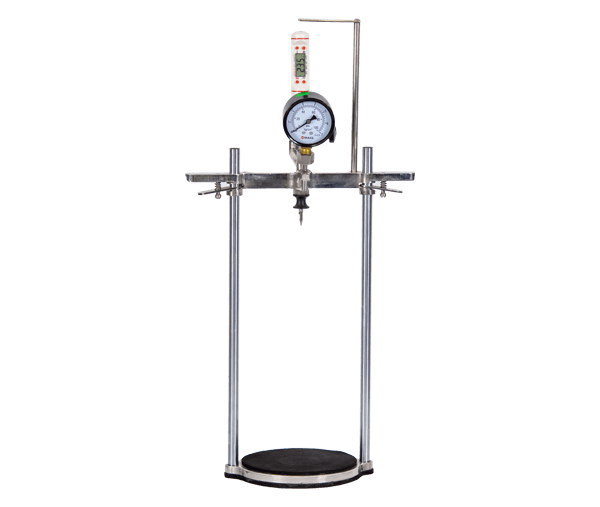

Carbonation Assembly is an efficient instrument designed to evaluate the pressure and temperature of carbonated drinks. It is considered to be one of the most precise and trustworthy inspection assembly in PET Bottle industry. A highly accurate spherical indenter is installed in the machine which is responsible for indenting the specimen under punch assemble utilizing pressing tools. The test readings can be seen afterwards on the respective gauges. The main body is being coated with corrosion resistant finish for long life functioning. Precisely designed dial gauges are equipped for zero error testing data along with a digitalized thermometer for temperature recording. The apparatus is not at all heavy like other equipment and allow complete portability for operators.
There are two more models available in this range with distinct span height and diameter value. These are:
1. Carbonation Assembly – 120 (A) – Model no. PCM – 0120 (A)
2. Carbonation Assembly – 120 (B) – Model no. PCM – 0120 (B)
- Pressure Gauge Range – 0 to 4.2 Kg/cm² or 0 to 60 psi
- Digital Temperature Gauge Range – Up to 300°C
- Height of Span – 350 mm
- Diameter – 95.5 ± 0.5 mm
- Dimensions – 580x210x105 mm
- The main body is coated with high-quality corrosion resistant plating.
- The machine is a strong structure offering a lightweight portability.
- Accurate Dial gauges are equipped for recording the pressure
- Digitalized Thermometer inserted using a piercing needle for accurate temperature analysis.
- Rapid guiding mechanism with strong locking clips
- Single handed operation with Spherical Indenter for hassle-free operation.
- Highly accurate test results under advanced controls.
