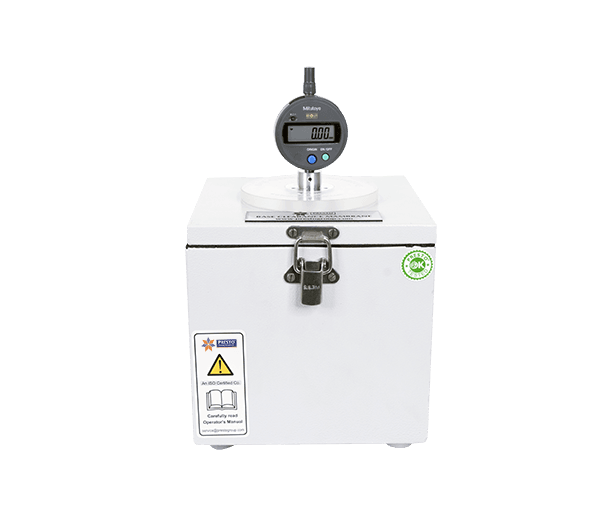

Base Clearance Membrane and Vault Control Unit is a consistent tool that helps the manufacturer in measuring the depth of the base of PET preforms and bottles. It is based on the principle to test the accuracy of the shape and size of preforms and determine stability. With Base Clearance Membrane and Vault Control Unit, PET Preform and bottles base depth is checked as it is dependent upon the shape, size and quality of the product. It has a basic flat base where the bottle is placed and with a probe checking the depth of base bottle vault easily.
The Base clearance membrane or vault control unit offered by Presto is widely used in PET & Preform industries to measure the depth of the base of the bottles which is essential to determine the stability of PET & Preform bottles. The instrument offers digital readout that offers precise measurement of the samples.
Base Clearance Membrane and Vault Control Unit
| Specification | Details |
|---|---|
| Measuring Range | 0 – 12.7 mm |
| Least Count / Resolution | 0.01 mm |
| Display Type | LCD (Digital) |
| Accuracy | ±0.1 mm |
| Power Supply | Single Button Cell, 1.55 V |
| Unit Conversion | mm / inch |
Features – Base Clearance Membrane and Vault Control Unit
User-Friendly Operation
-
Single-Button Operation
Simplifies the testing process with effortless, one-touch functionality. -
Zero Tolerance Capability
Ensures consistent zeroing for repeatable, accurate measurement cycles.
High-Precision Measurement
-
Accurate Depth Measurement
Easily measures the depth of bottle base vaults and membranes with digital precision. -
Digital Readout Support
Offers high-resolution readings for enhanced accuracy and clarity. -
Flat Base Surface Plate
Provides stable support for precise and repeatable measurement operations.
Consistent Test Repeatability
-
Ideal for Preforms and Bottle Bases
Ensures reliable test repeatability, making it suitable for quality control and production environments.
